IHG100-100A vertical stainless steel circulating pump

- Pump name: : vertical stainless steel circulating pump

- Type: pipeline type centrifugal pump

- Pump model: IHG100-100A

- Pump brand: ATACH

- Structure: vertical direct connection

- Number of impeller: 1

- Rated flow: 89 m3/h

- Rated lift: 10 m

- Supporting power/speed: 4 Kw/2900 RPM

- Power supply: 3-phase /380V/50HZ (accept customized special voltage, special frequency, explosion-proof, YE3 energy-saving motor)

- Material of flow parts: cast iron, stainless steel 304, stainless steel 316, stainless steel 316L

- Seal form: mechanical seal

- Inlet and outlet diameter: 100*100 mm

- Required cavitation allowance: 4.5m

- Mainly applicable conditions: environmental protection, dyeing and finishing, machinery and machinery factory supporting, industrial and urban water supply and drainage, tunnel construction water, high-rise building water supply, HVAC refrigeration cycle, boiler water supply and other occasions.

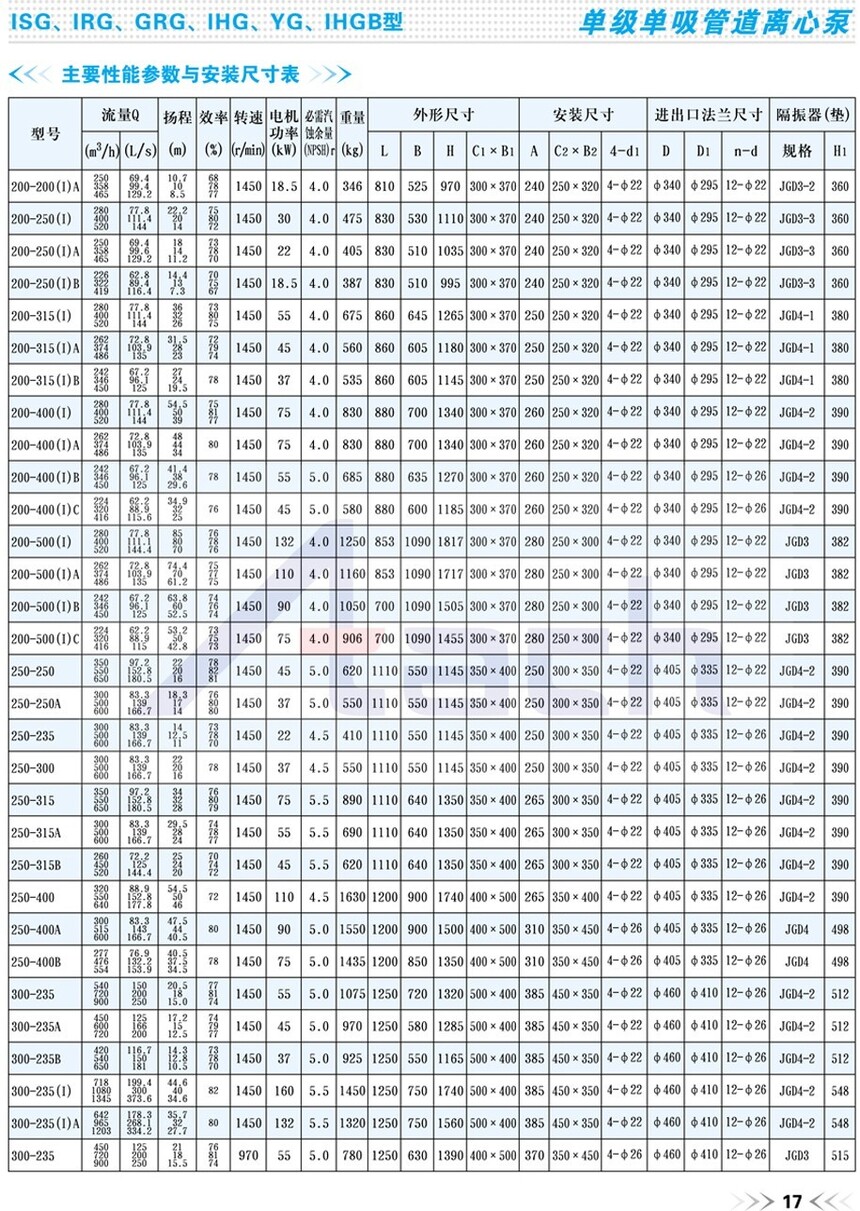

If you need other specifications or parameters of IHG series, please contact our sales staff for details.

■ Product use

Aitke brand IHG100-100A vertical stainless steel circulating pump system of the unit of scientific and technological personnel combined with domestic pump experts to choose the domestic excellent hydraulic model, the performance parameters of IS centrifugal pump, on the basis of the general vertical pump is cleverly combined design. At the same time according to the use of temperature, media and other different ISG based on derived for hot water, high temperature, corrosive chemical pump, oil pump. This series of products has the advantages of high efficiency, low noise, reliable performance and so on. Meet the latest national machinery JB/T53058-93 standard requirements. The products are designed and manufactured according to international ISO2858 standard. (explosion-proof motor can be installed).
