150ZW180-20 direct connection self-priming non-clogging bar

- Pump name: : direct-connected self-priming non-clogging sewage pump

- Type: centrifugal self-priming pump

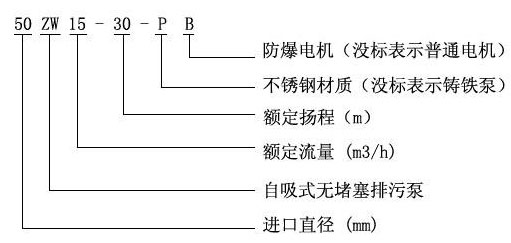

- Pump model: 150ZW180-20

- Pump brand: ATACH

- Structure: horizontal direct connection

- Number of impeller: 1

- Rated flow: 180 m3/h

- Rated lift: 20 m

- Supporting power/speed: 22 Kw/1450 RPM

- Power supply: 3-phase /380V/50HZ (accept customized special voltage, special frequency, explosion-proof, YE3 energy-saving motor)

- Material of flow parts: cast iron, stainless steel 304, stainless steel 316, stainless steel 316L

- Seal form: mechanical seal

- Inlet and outlet caliber: 150*125 mm

- Suction: 5 m

- Main application conditions: municipal sewage engineering, river pond culture, light industry, paper making, textile, food, chemical industry, electricity industry, environmental protection and other occasions.

If you need other specifications or parameters of ZW series, please contact our sales staff.
