GLF25X-13A stainless steel corrosion resistant self priming pump direct connection type

- Pump name: stainless steel corrosion resistant self-priming pump

- Type: Self-priming pump

- Pump model: GLF25X-13A

- Pump brand: ATACH

- Structure: horizontal direct connection

- Number of impeller: 1

- Rated flow: 6.8m3 /h

- Rated lift: 13 m

- Supporting power/speed: 0.75Kw /2800 RPM

- Power supply: 3-phase /380V/50HZ single-phase /220V/50HZ (accept customized special voltage, special frequency, explosion-proof, YE3 energy-saving motor)

- Material of flow parts: stainless steel 304L, stainless steel 316L

- Seal form: mechanical seal

- Inlet and outlet diameter: 25*25 mm

- Required cavitation allowance: 3.5m

- Main application conditions: municipal sewage engineering, river pond culture, light industry, paper making, textile, food, chemical industry, electricity industry, environmental protection and other occasions.

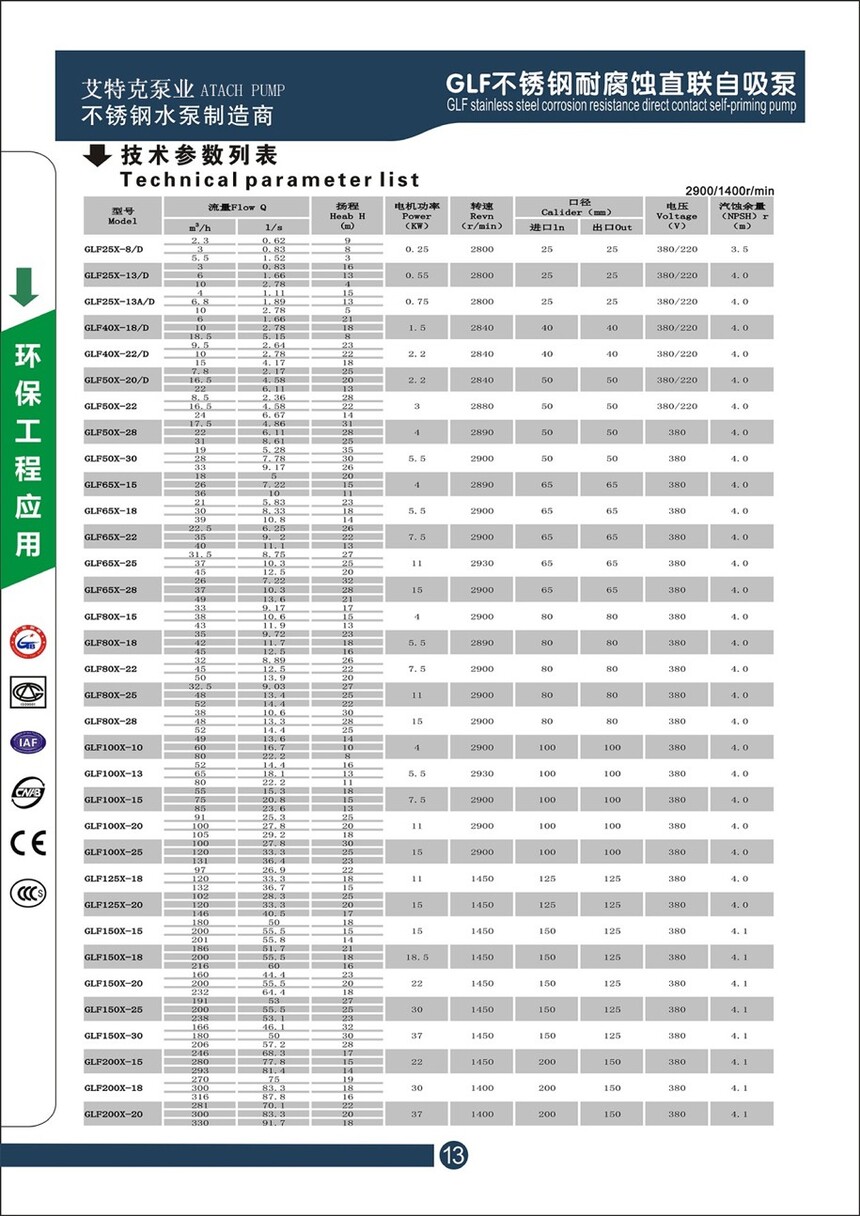

If you need other specifications or parameters of GLF-X series, please contact our sales staff.
