IH125-100-200 centrifugal chemical pump

- Pump name: centrifugal chemical pump

- Type: centrifugal pump

- Pump model: IH125-100-200

- Pump brand: ATACH

- Structure: horizontal with coupling

- Number of impeller: 1

- Rated flow: 100 m3/h

- Rated lift: 12.5m

- Supporting power/speed: 7.5Kw /1450 RPM

- Power supply: 3-phase /380V/50HZ (accept customized special voltage, special frequency, explosion-proof, YE3 energy-saving motor)

- Material of flow parts: stainless steel 304, stainless steel 316, stainless steel 316L

- Seal form: mechanical seal

- Inlet and outlet caliber: 125*100 mm

- Required cavitation allowance: 2.9m

- Main application conditions: chemical industry, petroleum, metallurgy, light industry, printing and dyeing, pharmaceutical, environmental protection, seawater desalination, offshore oil production, paper making, food and other occasions.

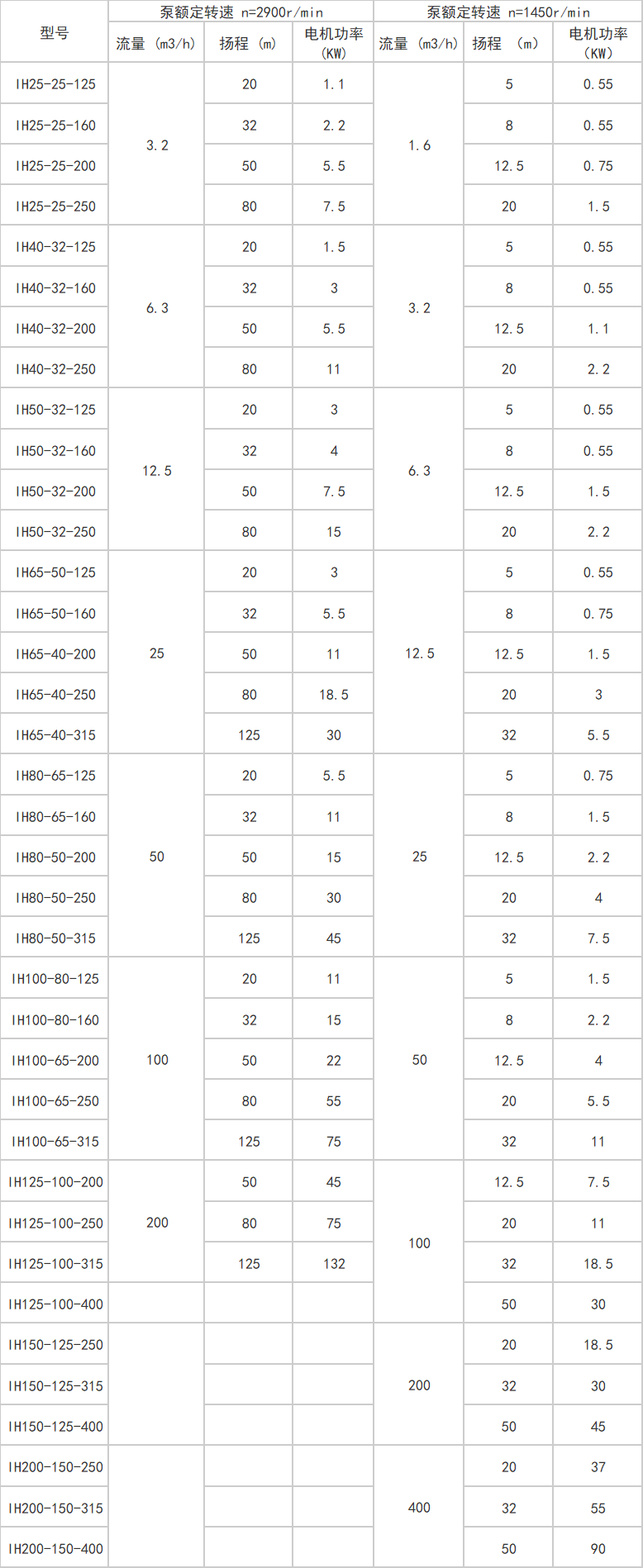

If you need other specifications or parameters of IH series, please contact our sales staff for details.
