KCB83.3 stainless steel gear oil pump

- Pump name: stainless steel gear oil pump

- Type: gear pump

- Pump model: KCB83.3

- Pump brand: ATACH

- Structure: horizontal with coupling

- Rated flow: 83.3 Lmin

- Rated pressure: 0.33Mpa

- Supporting power speed: 2.2Kw1450 RPM

- Power supply: 3-phase 380V50HZ (accept customized special voltage, special frequency, explosion-proof, YE3 energy-saving motor)

- Material of flow parts: cast iron, stainless steel

- Sealing form: oil seal

- Inlet and outlet diameter: 4040mm

- Maximum allowable medium viscosity: 500 c.s.t

- Main application conditions: suitable for conveying various oils, such as crude oil, diesel oil, lubricating oil; With copper gear can transport low flash point liquid, such as gasoline, benzene and so on.

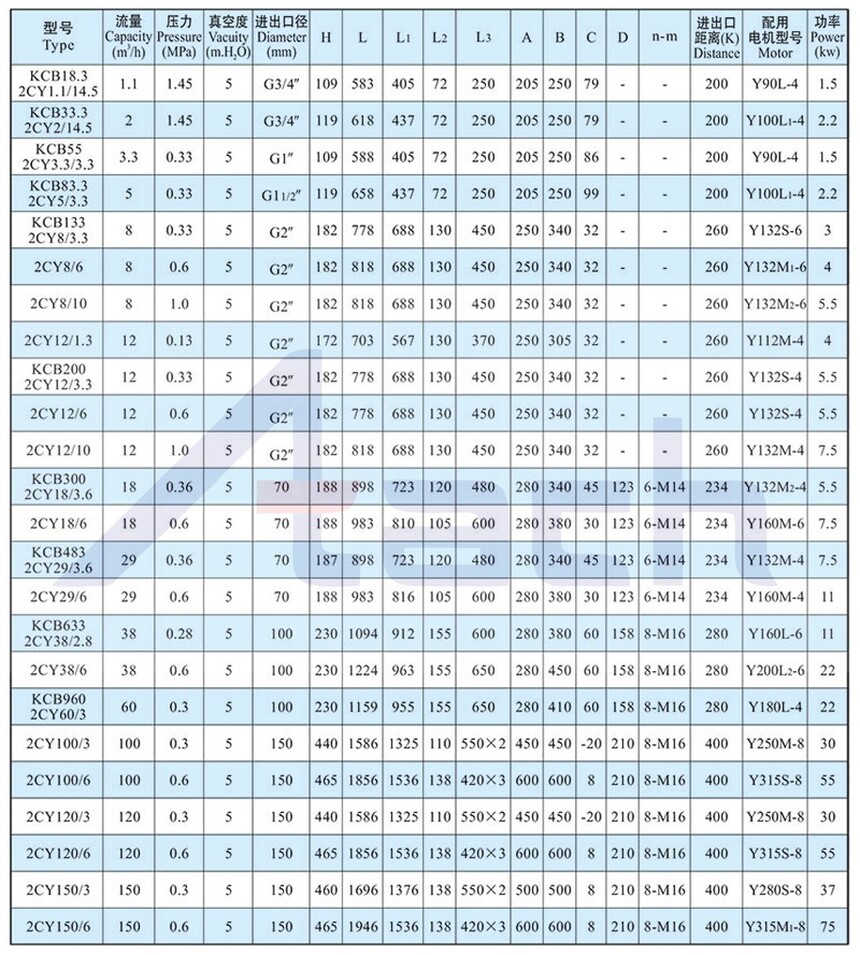

If you need other specifications or parameters of KCB series, please contact our sales staff.
